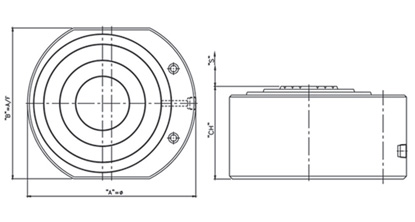

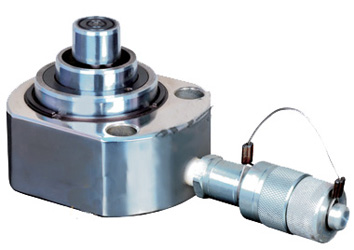

Capacity: 5-82, Stroke : 17-40 mm Working : 700 bar(Max)

Features / Benefits :

1. Compact and ultra low height telescopic design ,heat treated alloy steel body.
2. Hard chrome plated rams to resist scoring and corrosion
3. Single acting, spring return for smother lowering. High pressure long life seals.
4. Top mounting holes for easy fixturing. Grooved ram acts as integral saddle.
5. ‘O’ ring to arrest ingress of foreign particles.
6. Port size 1/4 inch or 3/8 inch NPT.
7. QCC with Plastic dust cap. Aluminium dust cap on request.

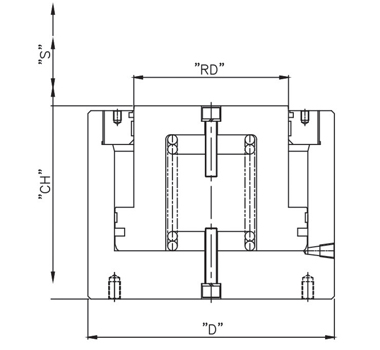

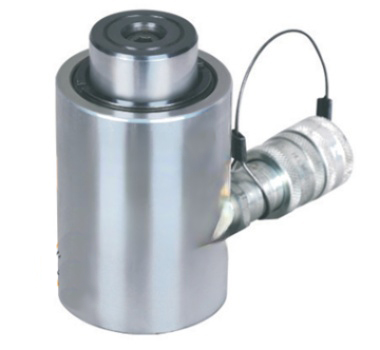

Low Height, Spring Return Hydraulic Jacks (LHJ-Series)



Capacity :10-200 tons, Stroke : 25 – 60 mm, Working : 700 bar (Max)

Features / Benefits :

1. Compact design, high strength heat treated alloy steel body.
2. Hard chrome plated ram to resist scoring and corrosion.
3. Single acting spring return for smooth lowering. High pressure long life seals.
4. Bottom mounting holes for bolting. Grooved ram acts as integral saddle.
5. Wiper to arrest ingress of foreign particles.
6. Port Size 3/8″ NPT.
7. QCC with Plastic dust cap. Aluminum dust cap on request.

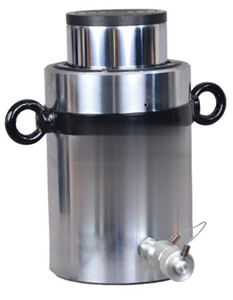

Plain Ram, Springs Return Hydraulic Jacks (LPS-Series)



Capacity : 5 – 500 tons, Stroke : 50 – 150 mm, Working : 700 bar (Max)

Features / Benefits :

1. Hight strength, Heat treated alloy steel body
2. Hard chrome plated ram to resist scoring and corrosion.
3. Single acting spring return for smooth lowering.
4. High pressure long life seals.
5. Wiper to arrest ingress of foreign particles.
6. Bootom mounting holes for bolting.
7. Adequate gripping by grooved saddle.
8. Port Sixe 3/8″ NPT.
9. Customised capacity, strokes, Collar threading and tilting saddle available on request.
10. QCC with Plastic dust cap. Aluminum dust cap on request.







Threaded Ram, Spring Return Hydraulic Jacks (LTS-Series)



Capacity : 10 – 500 tons, Stroke : 50 – 150 mm, Working : 700 bar ( Max )

Features / Benefits :

1. Hight strength, Heat treated alloysteel body
2. Blackodised ram.
3. Hight pressure long life seals.
4. Single acting spring return for smooth lowering. Threaded ram with mechanical safety lock-nut to sustain load on lock-nut for longer period
5. Bottom mounting holes for bolting.
6. Port Size 3/8″ NPT.
7. Adequate gripping by grooved saddle
8. QCC with Plastic dust cap.
9. Custom strokes and tilting saddle available on request
10. Aluminum dust cap on request

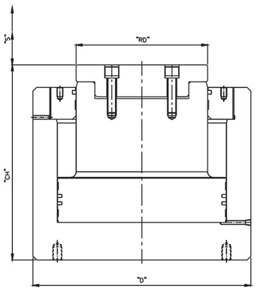

Plain Ram, Load Return Hydraulic Jacks ( PLR – Series )



Capacity : 600 – 1000 tons, Stroke : 100 – 150 mm, Working : 700 bar ( Max )

Features / Benefits :

1. High strength, Heat treated alloy steel body.
2. Hard chrome plated ram to resist scoring and corrosion.
3. Single acting load return.
4. High pressure long life seals. QCC with dust cap.
5. Adequate gripping by grooved saddle.
6. Bottom mounting holes for bolting.
7. Customised higher capacity, strokes, collar threading and tilting saddle available on request.
8. QCC with Plastic dust cap. Aluminum Dust Cap on Request.
9. Port Size 3/8″ NPT.

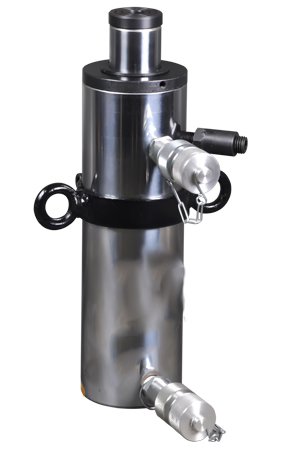

Plain Ram Center Hole, Double Acting Hydraulic Jacks (CHD-Series)



Capacity : 30-300 tons, Stroke : 100-150 mm, Working : 700 bar (Max)

Features / Benefits :

1. High Strength, Heat treated alloy steel body.
2. Hard chrome plated ram to resist scoring and corrosion.
3. Double acting for push pull application.
4. Wiper to arrest ingress of foreign particles.
5. Bigger center hole allows to run screws / cables / studs to pull or push forces.
6. High pressure long life seals. QCC with plastic dust cap.
7. Aluminium Dust cap on Request.
8. Bottom mounting holes for fixturing diffrent types of pullerr attachments.
9. Customised Higher capacity, strokes available on request
10. Port Size 3/8″ NPT







Hydraulic Toe Jack / Machine Lifts (HTJ-Series)



Features / Benefits :

1. High strength, Heat treated alloy steel body for better life.
2. Hard chrome plated ram to resist Corrosion.
3. Single acting load return.
4. High pressure long life seals. QCC with dust cap.
5. Adequate gripping by grooved saddles. Precise machined body for smooth operation.
6. Wiper to arrest ingress of foreign particles
7. Easy adjustable toe fixing positions for different heights and strokes.
8. High pressure long life seals. QCC with Plastic dust cap. Aluminium Dust Cap on Request.
9. Advantage to use single or multiple jack with common hand pump.
10. Adjustable legs for extra grip. Castor wheels for easy mobility in new version.
11. Port size 3/8th inch NPT.

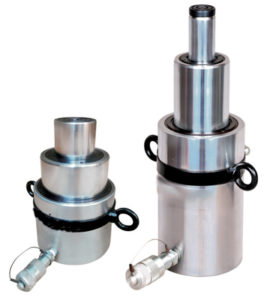

Hydraulic Telescopic Jacks (PTJ – Series)



Features / Benefits :

1. Telescopic design, heat treated alloy steel body.
2. Hand chrome plated rams to resist scoring and corrosion
3. Single acting load return. High pressure long life seals.
4. ‘o’ Ring to arrest ingress of foreign particles
5. Port Size 3/8 inch NPT.
6. QCC with Plastic dust cap. Aluminium dsut Cap on Request







Mechanical Infringing Track Jacks ( TJ – Series)



Features / Benefits :

1. Rugged construction for safety and efficient jacking
2. Alloy steel heat treated multiple pawls for strength and rigidity
3. Alloy steel body with integral handle
4. Forged & heat treated alloy steel rack with precision milled teeth for extra service life
5. Large base for stability
6. Tooth by tooth lifting and lowering. Trip lowering for quick withdrawal and winding up operation.
7. Lift per one stroke is 15mm
8. Toe lift capacity is 50% of head load.

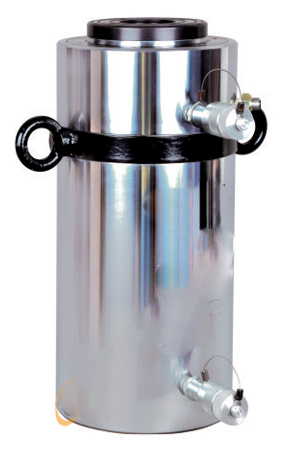

Double Acting Oil Return, Plain Ram, Hydraulic Jacks (DAP-Series)



Capacity : 10-1000 tons Stroke : 150 mm Working : 700 bar (Max)

Features / Benefits :

1. High strength, alloy steel body.
2. Hard chrome plated ram to resist scoring and corrosion.
3. Ideal for heavy duty application.
4. QCC with Plastic dust cap.
5. High pressure long life seals.
6. Bottom mounting holes for bolting.
7. Wiper to arrest ingress of foreign particles.
8. Safety valve in return line prevents pressure intensification in annular area.
9. Adequate gripping by grooved saddle.
10. Port Size 3/8″ NPT.
11. Customised capacity, strokes, collar threading and tilting saddle available on request.

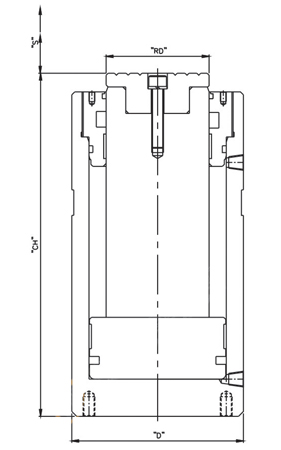

Hydraulics Jack Specification

Capacity: 5-1000 ton,  Stroke:150mm,  Working Pr:700bar(Max.)
Model	Capacity Tons		Closed Ht. “CH”	Stroke ‘S’	Ram Dia ‘RD’	Outer Dia  ‘D’	Oil Volume ‘CC’		Approx. Weight	Suitable Hand Pump
	For	Ret	MM	MM	MM	MM	For	Ret	KG.
DAP 5/150	5	2.5	280	150	25	65	145	71	6	PHP200/2
ADP10/150	10	4	300	150	35	75	240	100	9	PHP200/2
DAP15/150	15	7	305	150	40	85	350	168	13	Php 200/2
DAP20/150	20	9	310	150	45	95	468	230	16	PHP 200/2
DAP25/150	25	10	315	150	50	95	577	283	17	PHP 400/2N
DAP30/150	30	11	320	150	60	105	663	339	18	PHP 4002/N
DAP50/150	50	18	330	150	80	125	1178	424	28	PHP 400/3N
DAP75/150	75	28	340	150	95	160	1695	741	45	PHP 500/6
DAP100/150	100	44	350	150	105	175	2310	975	60	PHP 500/6
DAP150/150	150	77	360	150	120	215	3405	1710	106	PHP 500/6
DAP200/150	200	109	380	150	135	250	4712	2560	135	PHP 500/12
DAP250/150	250	134	390	150	150	295	5700	3060	172	PHP 500/12*PP
DAP300/150	300	152	410	150	170	300	6780	3375	203	PHP500/12*PP
DAP400/150	400	176	430	150	220	370	8580	2880	286	PHP 500/20*PP
DAP500/150	500	203	470	150	250	400	12063	4713	360	PHP/20*PP
DAP600/150	600	215	480	150	280	460	14430	5190	489	PHP 500/24*PP
DAP800/150	800	350	250	150	300	520	18840	8250	698	*PP
DAP1000/150	1000	394	550	150	350	580	23850	9820	945	*PP

*PP- Power Pack
